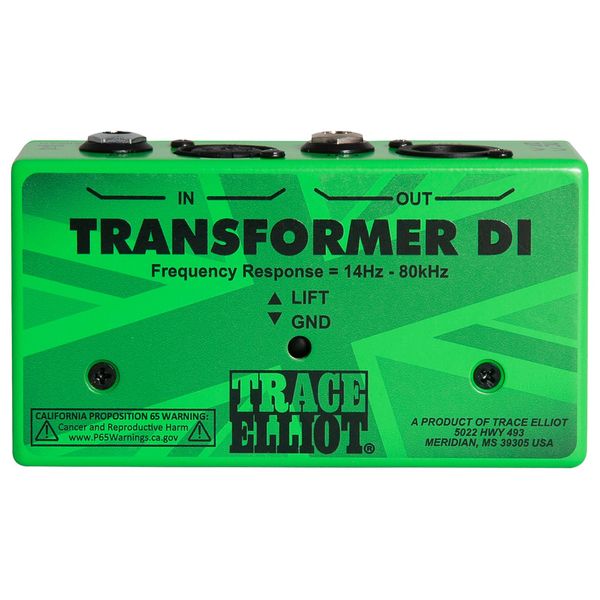

Trace Elliot Transformer DI
Compact DI Box
- For bass and acoustic instruments
- Audiophile quality: 1:1 signal conversion
- Converts balanced line signals to unbalanced line signals or unbalanced line signals to balanced line signals
- Perfectly balanced, proprietary transformer design with extremely high-permeability Ni-Fe core
- Linear frequency response from 20 to 20,000 Hz (-0.5 dB) with a deviation of no more than +/-1.0 dB from 14 to 80,000 Hz.
- Total Harmonic Distortion: < 0,015 % from 70 - 80.000 Hz, 0.5 % at 20 Hz
- galvanic isolation of > 500 V between secondary and primary windings
- Insertion loss: <1.0dB
- Input levels up to +22.2 dBu are processed without distortion
- Ground lift with RF rejection eliminates unwanted hum for cleaner sound
- Ideal for low to medium impedance signal sources
- Input: 6.3 mm jack, XLR
- Output: 6.3 mm jack, XLR
-
Tillgänglig sedan September 2025
-
Artikelnummer 625032
-
försäljningsenhet 1 Styck
-
Multi-Channel Unit No
-
Channels 1
-
Active / Passive Passive
-
19" No
-
Pad switchable No
-
Gnd/Lift switchable Yes
-
Powered by battery No
-
Speaker Simulation No
