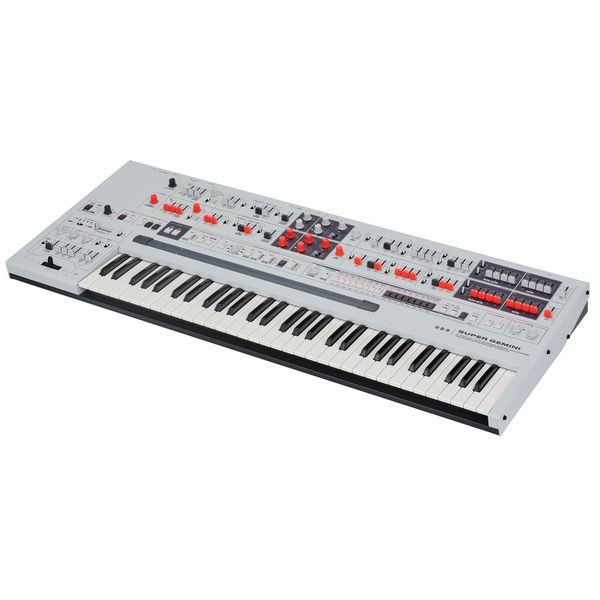

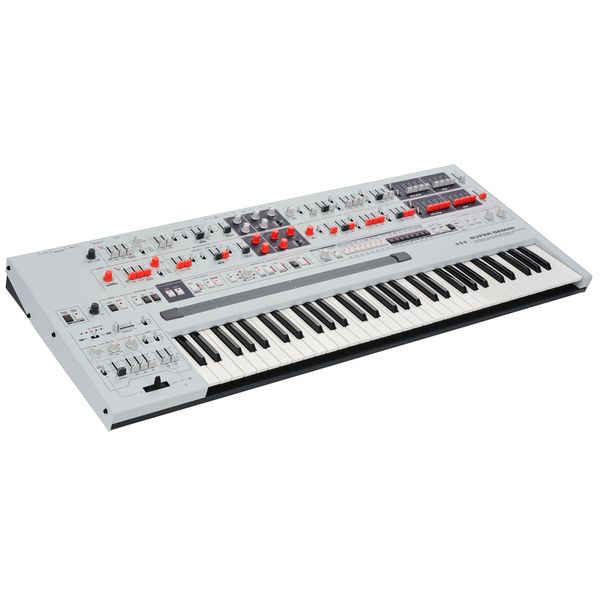

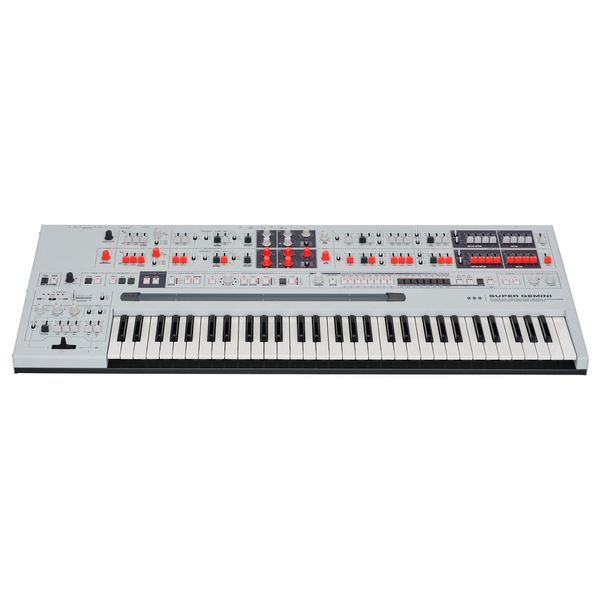

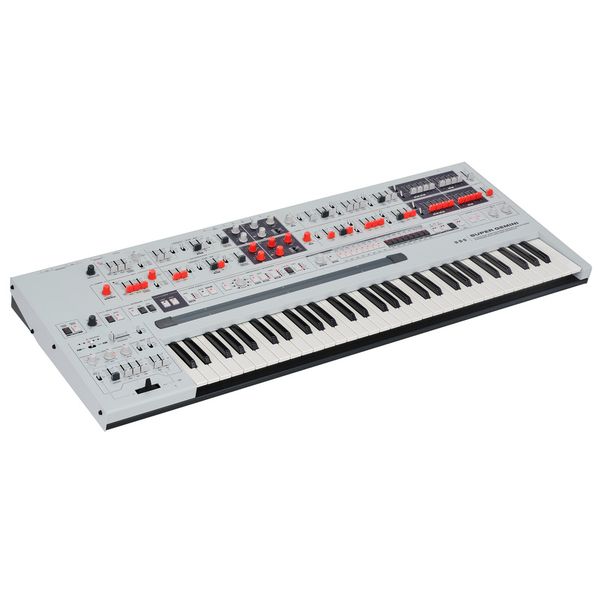

UDO Audio Super Gemini White

Bi-Timbral Analogue Hybrid Synthesizer

• 20 Voices polyphonic
• 61-Key semi-weighted keyboard with velocity and polyphonic aftertouch

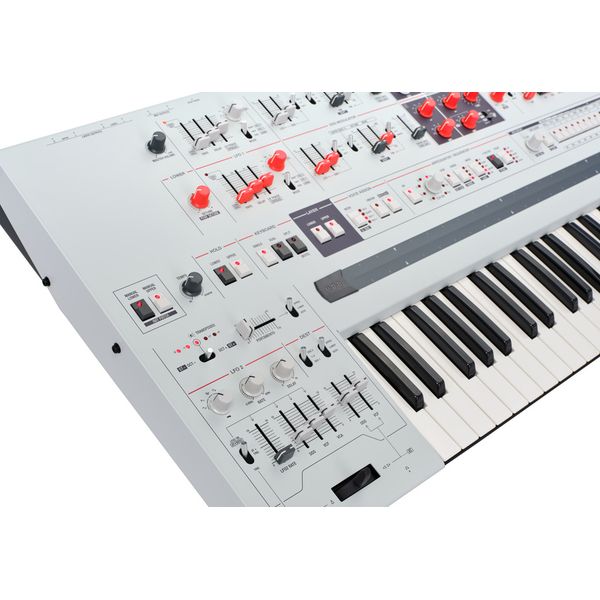

• Ribbon controller, controller section with assignable bender, portamento fader and octave switch
• Binaural analogue signal path
• Dual-layer architecture with direct access to two identical synthesis lines

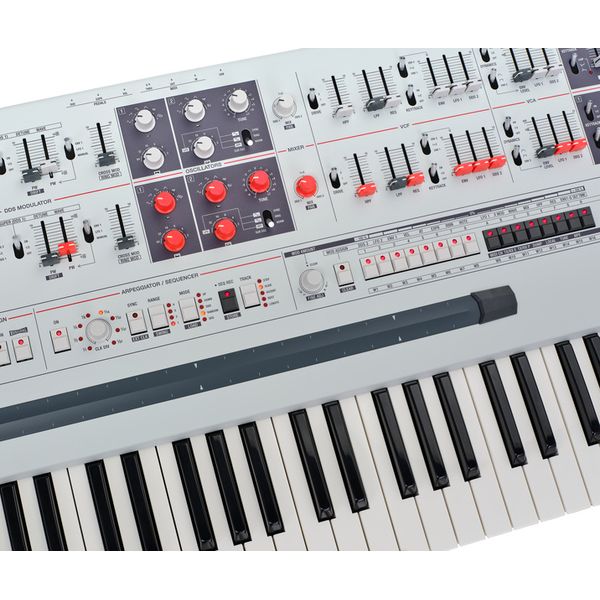

• Two digital oscillators per layer (FPGA-based)
• Oscillator 1 with sine, sawtooth, rectangle, triangle, noise and wavetable
• Oscillator 2 with sine, sawtooth, square, triangle, noise and pulse width modulation
• Oscillator synchronisation, cross modulation and ring modulator
• Analogue low-pass filter with resonance, static high-pass filter and switchable overdrive
• Analogue VCA, modulated via velocity, aftertouch and LFO 1
• Two ADSR envelopes
• LFO with extended frequency range and keyboard tracking for FM sounds
• Flexible modulation matrix for further soundscaping options
• Arpeggiator and step sequencer with MIDI sync
• Delay and chorus effect
• Memory for 256 presets, 64 user waveforms and 16 sequences

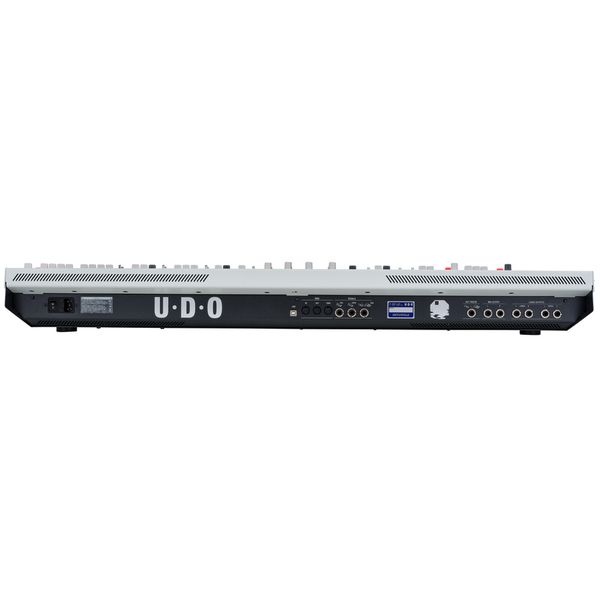

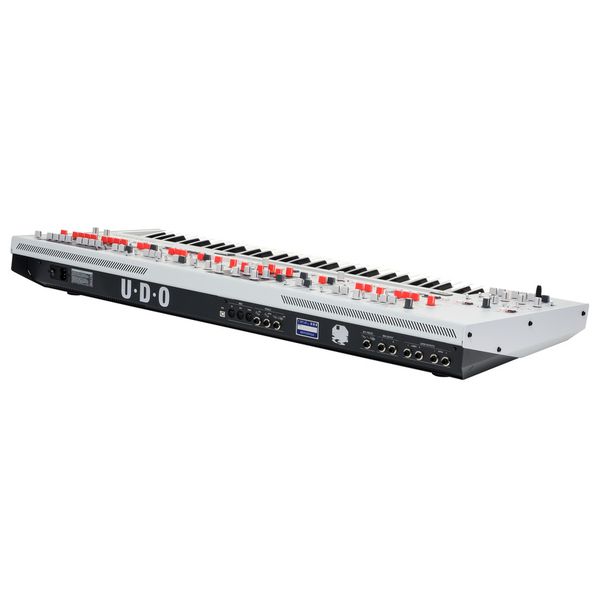

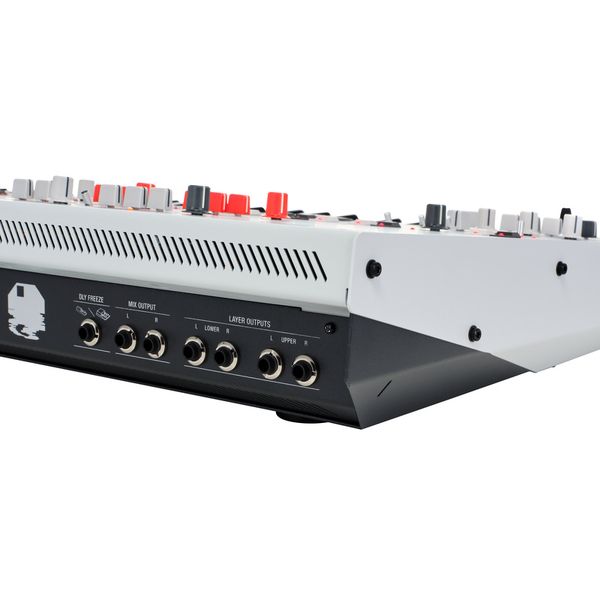

• Stereo output for both layers: 4x 6.3 mm jack
• Stereo mix output: 2x 6.3 mm jack
• Footswitch input for delay freeze: 6.3 mm jack
• Sustain and expression pedal inputs: 3x 6.3 mm jack
• MIDI in/out/thru
• USB port
• Dimensions (W x D x H): 1040 x 440 x 110 mm
• Weight: 14.5 kg
