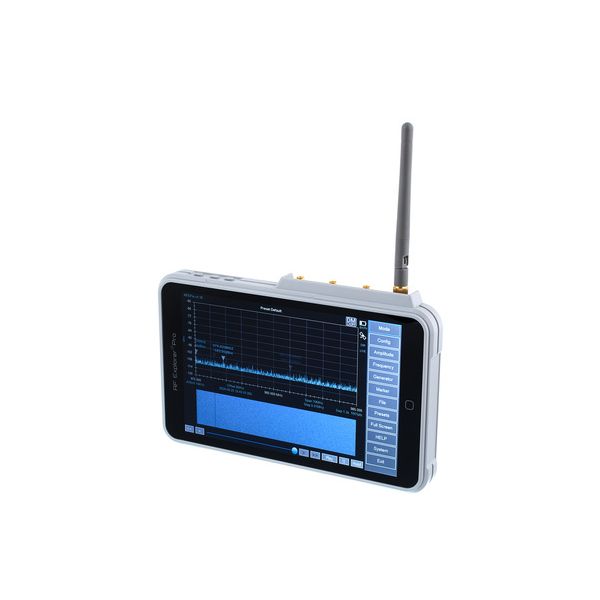

RF Venue RF Explorer PRO B-Stock
Spectrum Analyser and Tracking Generator
- Bandwidth: 15 mHz - 7.5 gHz (optional licences required)
- Dynamic range: -110 dBm to + 10 dBm (direct)
- 8" IPS TFT Touchscreen
- Screen resolution: 1280 x 800 pixels
- Frequency coordination calculations and real-time interference monitoring
- Recording, saving and playback of spectrum data possible
- Remote control via Ethernet possible
- WLAN analyser: 2.4 gHz / 5 gHz
- Integrated preamplifier, attenuators and RF cable tester
- Interfaces: USB 3.0, USB-C, Micro HDMI
- 3.5 mm Mini jack
- Dimensions (W x H x D): 215 x 140 x 25 mm
- Weight: 570 g
- Includes transport bag, 400 - 900 MHz articulated antenna, 900 - 6000 MHz articulated antenna, USB-C cable with power supply unit, 6 GHz permanent licence and frequency coordination permanent licence
-
Tillgänglig sedan December 2024
-
Artikelnummer 625948
-
försäljningsenhet 1 Styck
