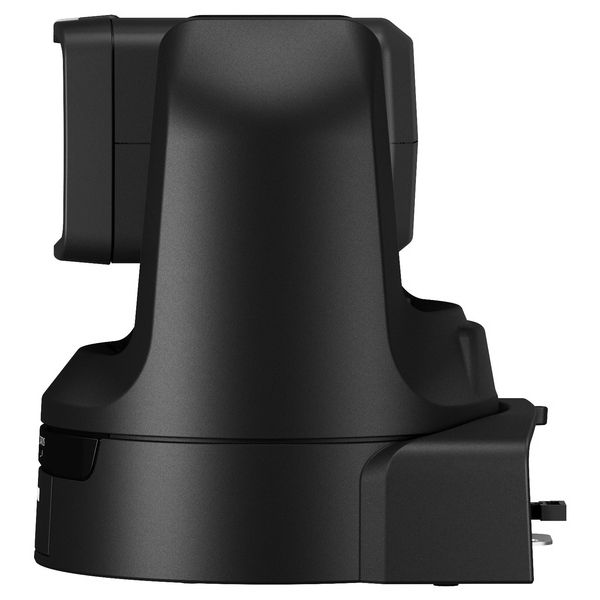

Canon CR-N100 w. Autotracking Bk

4K PTZ Camera with Auto Tracking for Indoor Use

The image quality ensures exceptional footage up to 4K UHD 30p, 4:2:2 10-bit
DIGIC DV6 processor with powerful image processing enables use in all types of environments

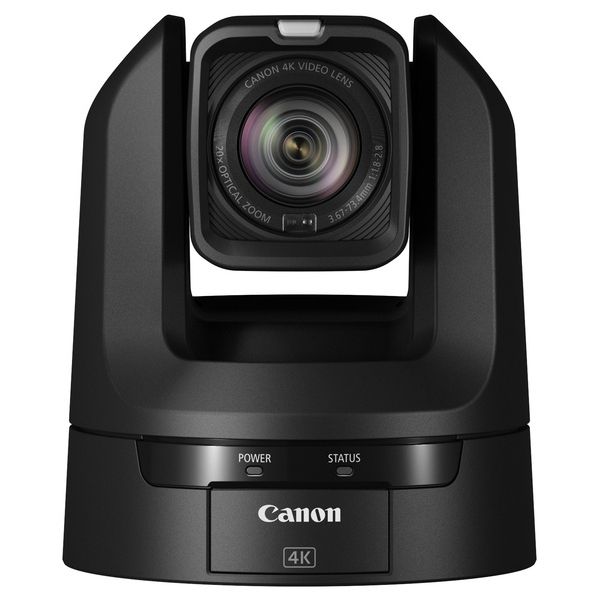

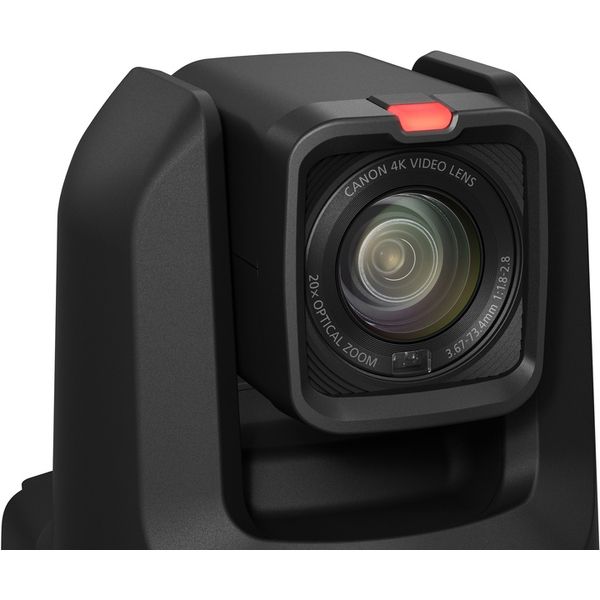

Wide-angle zoom lens with 20x optical zoom and a focal length range of 29.3–601 mm (equivalent to full-frame 35 mm format)
Hybrid autofocus for precise and fast focusing even in low light conditions
Support for IP streaming protocols such as NDI|HX2, SRT, RTMP/RTMPS, Canon XC and standard communication protocols
Smooth and precise pan and tilt movements at a speed of only 0.2°/sec can be controlled remotely

Technical specifications:

Image sensor: 1/2.3-inch single-plate CMOS sensor
Effective pixels: approx. 8.29 MP (3,840 x 2,160)
Lens: f=3.67–73.4 mm, F1.8–2.8
8-bladed circular aperture
Optical zoom: 20x
Digital zoom: 20x
Focal length: 3.67–73.4 mm, F1.8–2.8
Image angle at 4K UHD: Horizontal: 65.6 (W) – 3.6° (T) / Vertical: 39.8° (W) – 2.0° (T)
Full HD viewing angle: Horizontal: 63.5 (W) – 3.4° (D) / Vertical: 38.4° (W) – 1.9° (D)
Dimensions (W x H x D): approx. 154 x 178 x 164 mm (without protruding parts)
Weight: approx. 2.2 kg

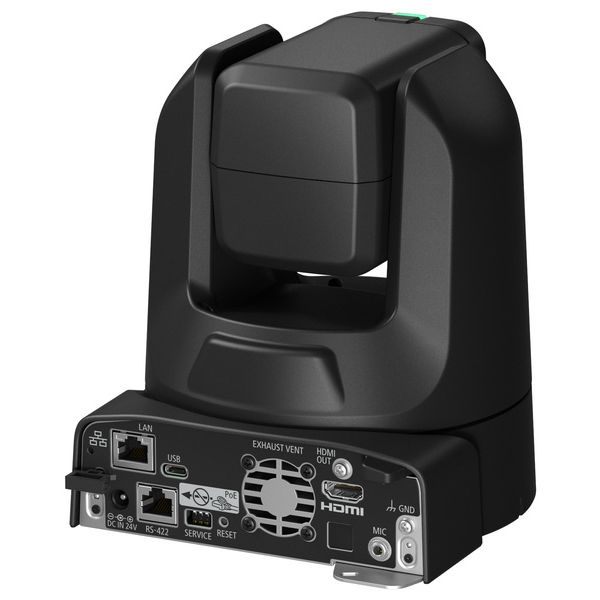

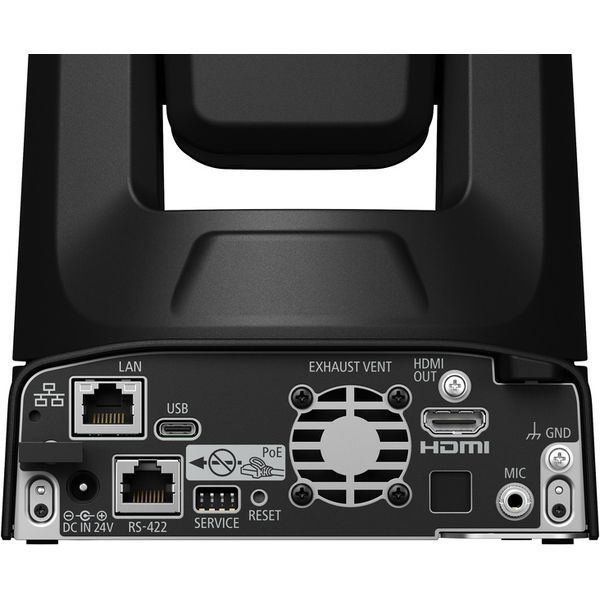

Interface:

Communication control: LAN, serial, IR
Network connection: 1x LAN RJ45 1000Base-T
HDMI: 1x HDMI Out
RS-422: 1x RJ45
MIC connection: 3.5 mm mini jack (stereo) (unbalanced, plug-in power supply supported)
USB port: 1 x Type-C (USB 3.1)

Power supply:

PoE: PoE+ power supply via LAN connection (IEEE802.3at compatible) (PoE cannot be used)
External power source: 24 V DC (using the supplied AC adapter)
Power consumption: PoE+ input: max. 16.2 W / DC input: max. 15.0 W
