ADJ Vizi Beam CMY

Beam Moving Head

• Light source: Discharge lamp (OSRAM Sirius HRI 310W Pro, estimated service life: Approx. 6,000 hours)
• Light colour / colour temperature / colour mixing: CMY colour mixing
• 14 dichroic colours + white incl. CTO (3200 K), CTB (9000 K) & UV
• Indexable colour wheel for split-colour effects
• Colour temperature: 7,850 K (±500 K)
• Luminous flux: 7267 lm
• Illuminance: 2.025.094 lx @ 5 m
• Colour rendering index (CRI): CRI 86 (±5)
• Dispersion angle 2°
• Optics: High-quality glass lens
• Motorised focus: 16-bit fine focus
• Frost filter for creating wash effects
• Movement: Pan: 540° (16-bit fine pan)
• Tilt: 270° (16-bit fine tilt)
• 3-phase high-speed pan/tilt motors
• Pan/tilt lock (transport lock)
• Display and operation: Colour LCD display, 4-button control panel
• Effects and features: CMY colour mixing, 14-segment colour wheel including CTO, CTB & UV (indexable and split colours), 17 static gobos + open (four gobos as beam reducers), gobo shake effect
• Two rotating prisms (16-facet circular, 6-facet linear)
• Prism overlay
• Frost filter
• Fan cooling
• Power consumption: Max. 390 W (@ 230 V) supply voltage: 100 – 240 V AC, 50/60 Hz
• Control / dimming: DMX512, RDM
• On-board wireless DMX (Aria X2)
• DMX channel modes: 20 / 24 channels
• 0 – 100% continuously variable dimming
• IP protection rating: IP20
• Housing material: Metal / Aluminium

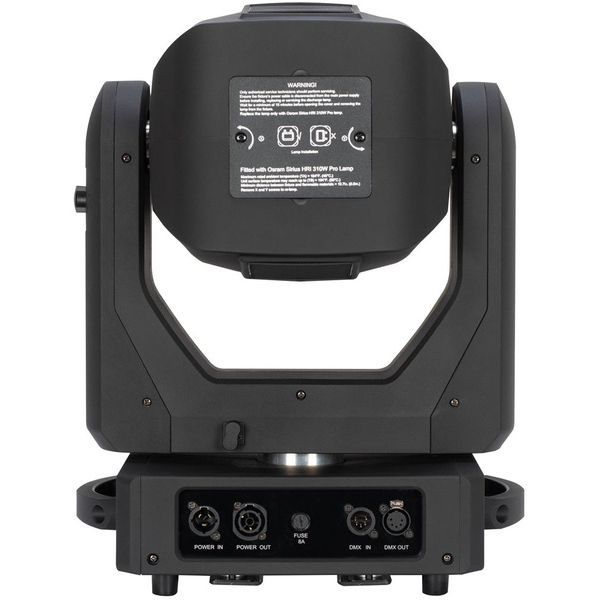

• DMX connection: XLR 5-pin In / Out
• Power connection: Power Twist TR1 In / Out
• Dimensions (L x W x H): 248 × 364 × 536 mm
• Weight: 18.7 kg
• Housing colour: Black
• Includes two Omega brackets (type: 107), power cord (length: Approx. two metres) and user manual
