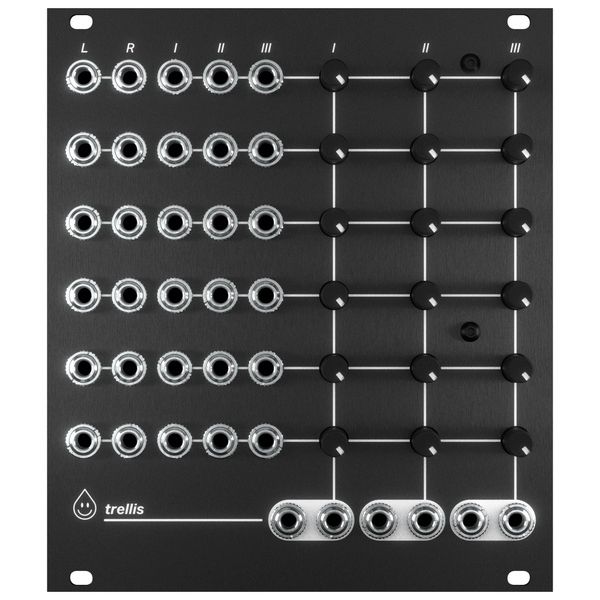

Acid Rain Technology Trellis
Eurorack Module
- Stereo matrix mixer for flexible audio routing in a modular system
- Enables complex signal routing, parallel processing, and effect and feedback routing
- 6 stereo inputs and 3 stereo outputs
- 18 stereo routing points with a total of 36 VCAs
- Manual and CV-controlled level control for all matrix points
- Control for setting the maximum level for each connection
- Any input can be routed to any output
- Simultaneous routing of a signal to multiple outputs
- For mono signals, the left input is internally normalised to the right channel
- Mono-compatible outputs achieved by internally summing both channels where required
- Width: 22 HP
- Current consumption: 98 mA (+12 V) / 98 mA (-12 V)
- Depth: 25 mm
-
Artikelnummer 657268
-
försäljningsenhet 1 Styck
-
Modul Type Stereo
-
Width 22 TE / HP
